EY 20-100 straight connecting base

Material:ADC12 Die Casting

Product Features

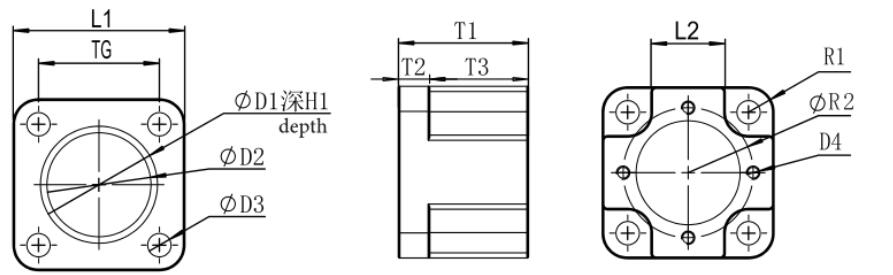

Φ	L1	TG	D1	H1	D2	D3	T1	T2	T3	L2	R1	R2	D4
20	32	22	20	5.2	18	4.5	35	6	29	14	5	24	M3
25	40	28	-	-	22	5.5	35	8	27	18	6	30	M4
32	45.6	32.5	32	5.2	24	6.6	40	10	30	20.5	6.5	32	M4
40	54	38	40	5.2	30	6.6	40	10	30	26	7.8	40	M4
50	66	46.5	45	5.2	40	9	50	12	38	28.5	9.65	50	M5
63	76	56.5	58	5.2	48	9	54	12	42	38.5	9.65	63	M5
80	96	72	72	5.2	63	11	62	12	50	54	12	82	M6
100	116	89	90	5.2	52	11	70	12	58	69	12	90	M6

Please contact with our sales if you need OEM services.
